Governance & Audit

Governance: One command to run all validation checks
Audit: Track all governance operations for compliance

What Is Ranex Governance?

Ranex Governance orchestrates all validation subsystems:

Compliance Engine - Standards enforcement
Structure Validator - Architecture rules
Security Scanner - Vulnerability detection
ARBITER - Test integrity validation

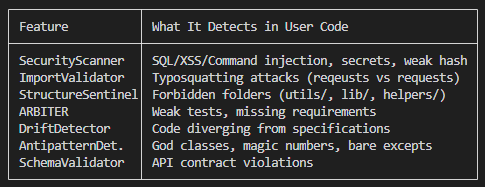

Feature detection table showing all validation subsystems — Ranex validation subsystems and what they detect in user code

Full Governance Check

Run comprehensive validation:

ranex govern check

Output:

🛡️  Full Governance Check
════════════════════════════════════════════════════════════
  Target: /home/user/myproject
  Time:   2025-11-29 14:18:29
════════════════════════════════════════════════════════════

📋 Compliance Check
   Status: PASS
   Score:  92/100

🏗️  Structure Check
   Status: PASS

🔒 Security Check
   Status: PASS
   Vulnerabilities: 0

════════════════════════════════════════════════════════════
Result: PASSED
Score:  92/100

Options

Option	Description
`--json`	Output as JSON for CI/CD
`--verbose, -v`	Detailed output
`[PATH]`	Target path (default: current directory)

Pre-Commit Hook

Block bad commits before they happen:

ranex govern pre-commit

Output (pass):

✅ Pre-commit validation passed
   Checks: structure, security, compliance
   Duration: 45ms

Output (fail):

❌ Pre-commit validation FAILED
════════════════════════════════════════════════
  Failed checks:
    - Security: 2 vulnerabilities found
    - Structure: 1 violation

  Commit blocked. Fix issues and try again.
════════════════════════════════════════════════

Set Up Git Hook

# Add to .git/hooks/pre-commit
#!/bin/bash
ranex govern pre-commit

Security Scanning

Ranex includes a SAST (Static Application Security Testing) scanner:

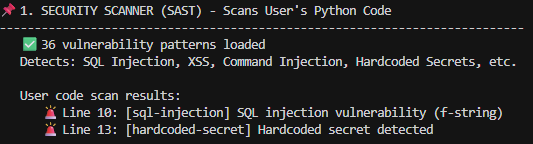

Security Scanner detecting SQL injection and hardcoded secrets — SAST scanner detecting SQL injection and hardcoded secrets in user code

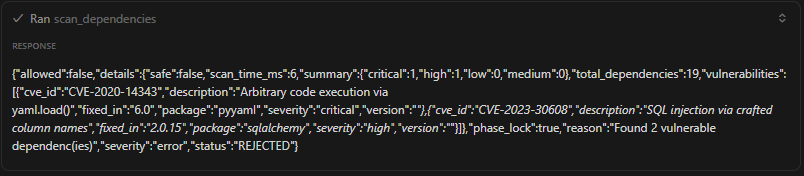

Dependency scan detecting CVE vulnerabilities — Dependency vulnerability scan - detecting CVEs in pyyaml and sqlalchemy

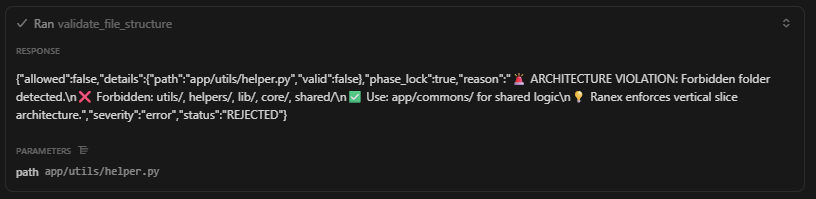

Architecture violation detection — Architecture violation - forbidden folder detected, enforcing vertical slice architecture

Audit Trail

All governance operations are logged for compliance.

Query Audit Trail

ranex audit query

Output:

📋 Audit Trail
────────────────────────────────────────────────────────────
┌──────────────────────┬──────────────┬─────────┬──────────┐
│ Timestamp            │ Operation    │ Result  │ User     │
├──────────────────────┼──────────────┼─────────┼──────────┤
│ 2025-11-29 14:20:00  │ govern check │ PASS    │ developer│
│ 2025-11-29 14:18:30  │ pre-commit   │ PASS    │ developer│
│ 2025-11-29 14:15:00  │ scan         │ PASS    │ developer│
└──────────────────────┴──────────────┴─────────┴──────────┘

Filter Audit Results

# By action type
ranex audit query --action govern

# By time range
ranex audit query --since 24h

# By result
ranex audit query --result FAIL

CI/CD Integration

GitHub Actions

name: Governance Check

on: [push, pull_request]

jobs:
  governance:
    runs-on: ubuntu-latest
    steps:
      - uses: actions/checkout@v4

      - name: Install Ranex
        run: pip install ranex

      - name: Run Governance Check
        run: ranex govern check --json > governance.json

      - name: Upload Results
        uses: actions/upload-artifact@v4
        with:
          name: governance-report
          path: governance.json

GitLab CI

governance:
  image: python:3.12
  script:
    - pip install ranex
    - ranex govern check
    - ranex govern pre-commit

Commands Reference

Command	Description
`ranex govern check`	Full governance validation
`ranex govern pre-commit`	Pre-commit hook validation
`ranex govern transition`	Validate phase transition
`ranex audit query`	Query audit trail
`ranex audit export`	Export audit log
